Plastic Bag Automatic Packaging Machine

Home » Products » Vertical Flow Wrapper（VFFS） » RZ-2 Automatic Packaging Machine for Plastic Bag

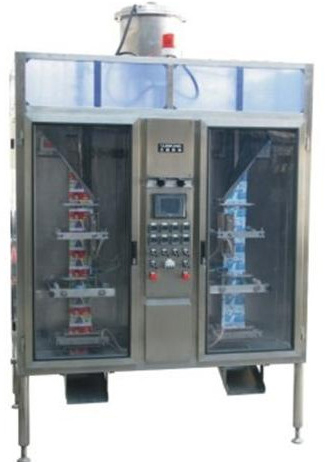

Automatic Packaging Machine for Plastic Bag

Application

RZ-2 automatic packaging machine uses the plastic bag to
package the dairy products such as pasteurized milk, fresh
milk and yogurt, and the seasonings such as soysauce and
vinegar.

Feature
1. This machine could stably run with high efficiency.
2. The filling work could be done accurately in the fully automatic process.

Product Specification

Model	RZ-2
Filling volume (ml)	100-500
Production capacity (packs/hour)	5000-6000 (250ml/pack)
Filling heads	2
Packaging form	Sealing three sides of the plastic bags
Control method	PLC+human-computer interface
Air consumption (M³/min)	≦0.5
Operating air pressure (Mpa)	≧0.6
Gross power (KW)	4.5
Gross weight (kg)	1100
Dimension (mm)	1800×1250×2900
