Horizontal Plastic Cup Filling and Sealing Machine

Applications

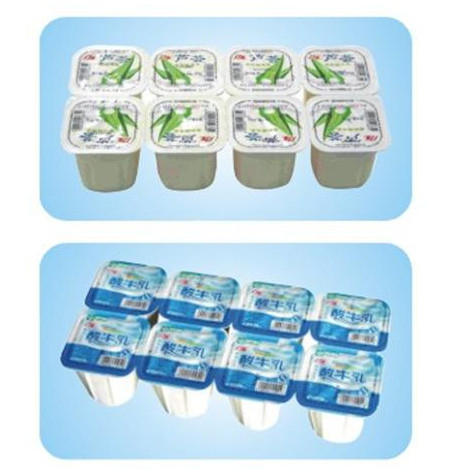

The horizontal plastic cup filling and sealingmachine is a kind of liquid & semi-viscous material packaging equipment for pure milk, yogurt, milk beverage,soya-bean milk, fruit juice,ice cream, seasoning, everyday chemical, among others.

Technical Parameters of Inline Cup Filler, Pre-made cup

Model	SKB-4D	SKB-6D	SKB-8D	SKB-10D
Production Speed	30-50 cups/min	40-75 cups/min	50-100 cups/ min	60-120 cups/ min
Power	3.5kW	5.5kW	7kW	9kW
Air Compression Ratio	0.4m³/min	0.6m³/min	0.9m³/ min	1.2m³/ min
Machine Weight	800kg	1000kg	1300kg	1600kg

Features
• Suitable for pre-made round, square and triangular plastic cup, the linear stepping filling machine is applicable for sealing cups using aluminium foil or paper.
• The horizontal plastic cup filling and sealing machine can complete cup feeding, liquid filling, cap sucking, cup unloading, and cup conveying, automatically.
• The standard horizontal liquid packaging machine can be used for the filling volume of 50-500ml per cup. The special filling system and the CIP cleaning system satisfy strict sanitary requirement.
