Bag Packing Machinery by Pouch Type

Pouch Type

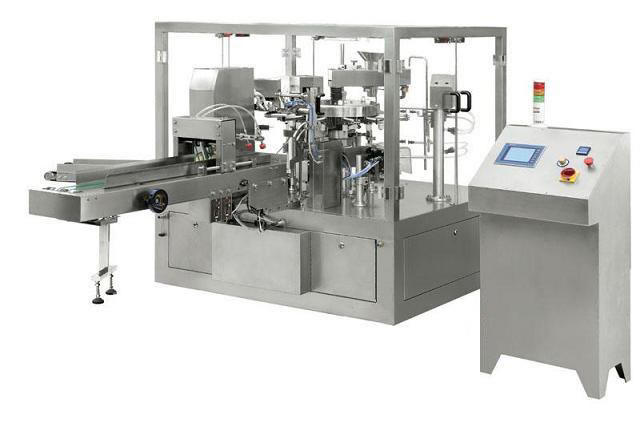

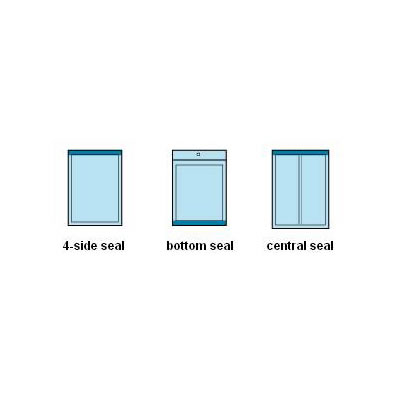

The flat bag fill seal machine suits all kinds of flat pouches
(pillow bag), including three-side sealing pouch, four-side
sealing pouch, central-sealing pouch, etc.

Specifications

Bag types	Portable bag, 4-side sealing bag, 3-side sealing bag, paper bag, etc.
Bag sizes	W:80-320mm L:100-380mm
Filling range	5-1500g
Packing speed	15-68 bags/min (depending on the product and filling weight)
Package accuracy	Error ≤±1%
Compressed air	≥0.4 m3/min

Features

Vertical bag-feeding device: With the bag feeder, the bag magazine of the flat bag fill seal machine can store many bags and makes it easy to catch and deliver each bag.

Pouch Type

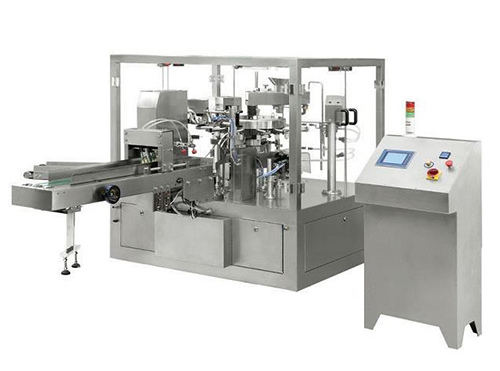

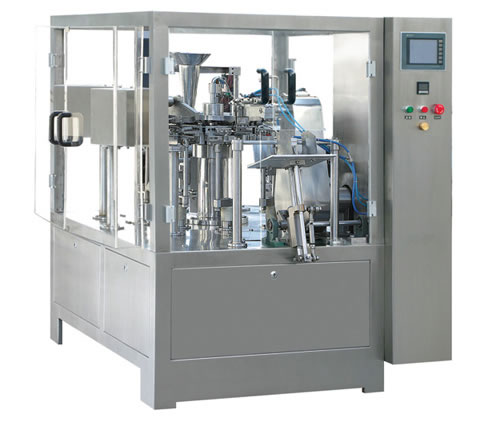

The doy bag filling sealing machine is suitable for all
kinds of stand up pouches (doy bag/ bottom gusset bag).

Specifications

Bag types	Standup bag/ doy bag/ bottom gusset bag
Bag sizes	W:80-320mm L:100-380mm
Filling range	5-1500g
Packing speed	15-45 bags/min (depending on the product and filling weight onto the bag packing machinery)
Package accuracy	Error ≤±1%
Compressed air	≥0.4 m3/min

Features

Horizontal bag-feeding device: The device makes the doy bag filling sealing machine store more bags, feeding each bag automatically.

Bag Packing Machinery

As a Chinese professional bag packing machinery manufacturer, RezPack provides a complete line of bag packing machines, including flat bag fill seal machine, doy bag filling sealing machine, zipper pouch filling closing sealing machine, gusset bag fill seal machine, spout bag pick fill seal machine, retort bag fill seal machine, shaped pouch fill seal machine, big bag filling sealing machine, and bag with tray fill seal machine.
These RezPack packing machines share main features, safety and hygiene, which are specified as follows.

Main Features
• Easy to operate: PLC controller, HMI system, fault indication on the touch screen.
• Easy to adjust: The bag packing machinery needs only about 10 minutes to change different pouches.
• Frequency control: speed can be adjusted by frequency conversion within the range.
• High automation: The bag packing machinery is unmanned in weighing and packing process, machine alarm automatically in case of failure.

Safety and Hygiene
• RezPack bag packing machinery provides no fill and no seal when there is no pouch/ incorrect pouch opening, in addition to machine alarm.
• The machine alarms and stops if there is inadequate air pressure.
• The bag packing machine comes with safety guards together with safety-switches, and will alarm and stop when the safety guards are opened.
• The bag packing machinery has hygienic structure, with the parts that contact the products made of sus304 stainless steel.
• The packing machine adopts imported engineering plastic bearings, with no need to oil, no contamination.
• With oil-free vacuum pump, the bag packing machinery avoids pollution to the production environment.

The bag packing machinery has countless applications, including

Applications
• Solid: candy, chocolate, rock candy, cookies, cakes, peanuts, green beans, pistachios, nuts, cooked food, pickles, puffed food, daily necessities, etc.
• Granule: MSG, chicken, sugar, melon seeds, nuts, capsules, granular medicines, seeds, feed, pesticides, fertilizers, chemical raw materials.
• Powder: spices, monosodium glutamate, salt, glucose, refined sugar, milk powder, detergent powder, pesticides, fertilizers, chemical raw materials, etc.
• Liquid: rice wine, soy sauce, rice vinegar, fruit juice, beverage, detergent, etc.
• Thick liquid: tomato sauce, peanut butter, jam, chili sauce, bean paste, etc.
• Other materials can be bagged.

Given below are differences of a list of the bag packing machinery.
