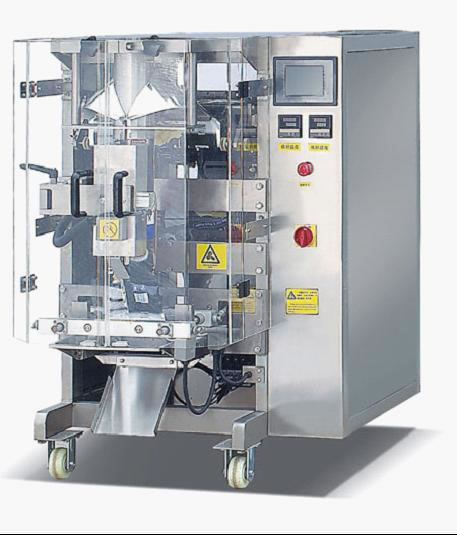

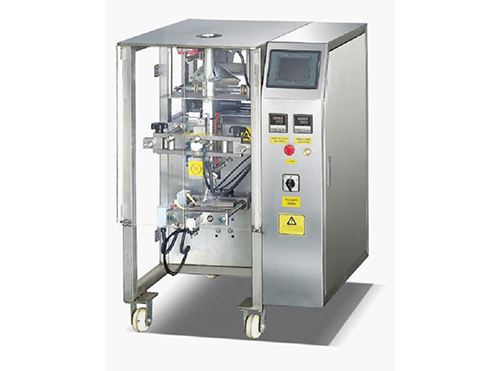

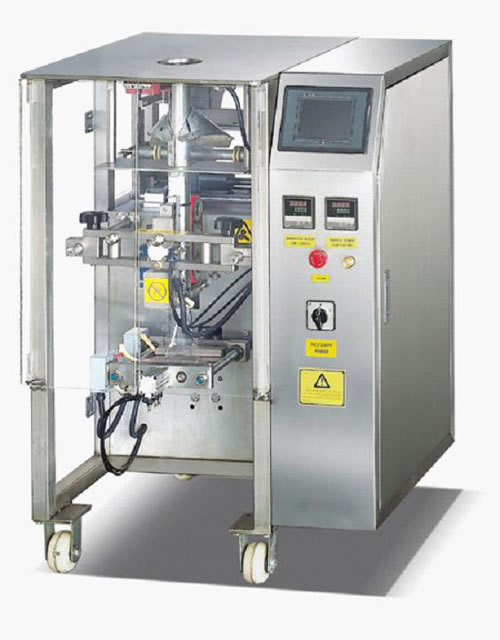

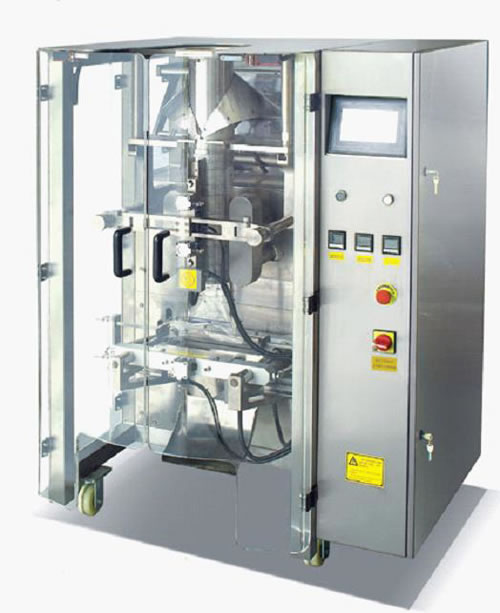

3-Side Sealing Bag VFFS Machine (Vertical, Form, Fill, Seal)

Application

The 3-side sealing bag VFFS (Vertical Form Fill Seal) machine suits use for packing granule, power, solid state materials, such as coffee, potato chips, puffed food, shrimp crackers, peanuts, nuts, popcorns, salt, sugar, tea, seeds, and more.

Main Specifications

Machine Model	RZ-400	RZ-500	RZ-600
Capacity	Max. 70bags/min	Max. 70bags/min	Max. 60bags/min
Bag size	Width: 50-150mm	Length: 60---300mm	Length: 80-350mm
Bag size	Length: 80-200mm	Width: 60---200mm	Width: 100-250mm
Max. film width	Max. 320mm	Max. 420mm	Max. 520mm
Film thickness	0.04-0.09mm	0.04-0.09mm	0.04-0.09mm
Power source	2KW 220V 50HZ	0.8Mpa 0.5m³/min	2.5KW 220V 50HZ
Air consumption	0.8Mps 0.25m³/min	2.2KW 220V 50HZ	0.8Mps 0.4m³/min
Dimension	L1115×W800× H1370 mm	L1320×W920× H1392mm	L1500×W1140× H1540mm
Weight	300kg	450kg	680kg

Main Features

RezPack 3-side sealing bag vertical form fill seal machine has its film drawing down system controlled by servo motor.
The 3-side sealing bag VFFS machine provides automatic film rectifying deviation.
The alarm system of the vertical packaging machine helps reduce waste.
Equipped with feeding and measuring devices, the 3-side sealing bag VFFS machine accomplishes feeding, measuring, filling, sealing, date printing, charging (exhausting), counting and finished product delivery, in a continuous flow.

As a leading Chinese 3-side sealing bag vertical form fill seal machine manufacturer, RezPack provides bag packing machinery, measuring equipment, modified atmosphere packaging machine, conveyor equipment, and other products. Due to production and operation in rigid compliance with international standards, Rezpack is ISO9001 approved and its products, are CE certified. If you are interested in the 3-side sealing bag VFFS machine, please see the webpage to find the right product for your business. The staff at Rezpack looks forward to working with you.
