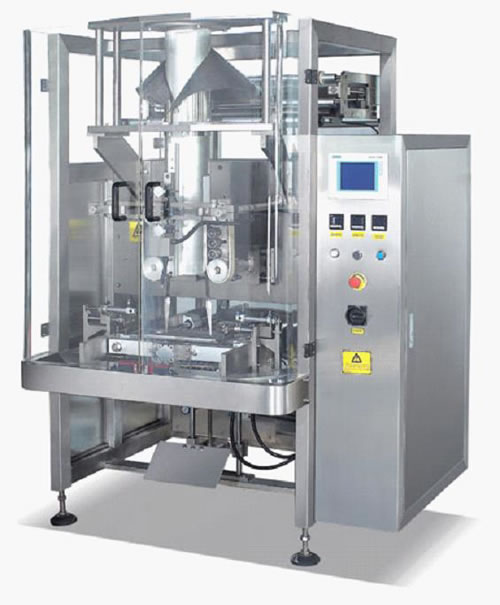

Gusset Bag VFFS Machine (Vertical, Form, Fill, Seal)

Application

The gusset bag VFFS (Vertical Form Fill Seal) machine is ideal for packing granule, power, solid state materials, such as coffee, potato chips, puffed food, shrimp crackers, peanuts, nuts, popcorns, salt, sugar, tea, seeds, and others.

Main Specifications

Model	RZ-800	RZ-900	RZ-1050
Capacity	Max. 50bags/min	Max. 45bags/min	Max. 30bags/min
Bag size	Width:100-300mm	Width:140-350mm	Width:300-500mm
Bag size	Length: 100-390mm	Length: 100-450mm	Length: 100-800mm
Max film width	Max. 620mm	Max. 730	Max. 1050mm
Film thickness	0.04-0.09mm	0.06-0.12mm	0.06-0.12mm
Power source	4.0KW 220V 50HZ	4.5KW 220V 50HZ	6KW 220V 50HZ
Air consumption	0.8Mpa 0.6m³/min	0.8Mpa 0.8m³/min	0.8Mpa 0.8m³/min
Dimension	L1250 × W1600 × H1700	L1360 × W1630 × H1900	L2250 × W1800 × H2400
Weight	800kg	900kg	1000kg

Main Features

RezPack gusset bag VFFS machine provides double servo motors for the film drawing down system.
The gusset bag vertical form fill seal machine comes with automatic film rectifying deviation.
The vertical packaging machine is designed with famous brand PLC and pneumatic system for vertical and horizontal sealing.
The gusset bag VFFS machine is compatible with different internal and external measuring devices.

RezPack is an experienced gusset bag VFFS machine manufacturer, located in China. Through the establishment of strict quality management system, RezPack has received the ISO9001 certification, and is able to provide top quality packing machine for international customers. High quality, CE certified, competitively priced products have gained Rezpack a large number of customers from different countries and regions around the world, such as America, Canada, Mexico, New Zealand, Australia, South America, Europe, and the Middle East, among others. The staff at Rezpack warmly welcomes global buyers to try Rezpack packaging machinery and other products.
