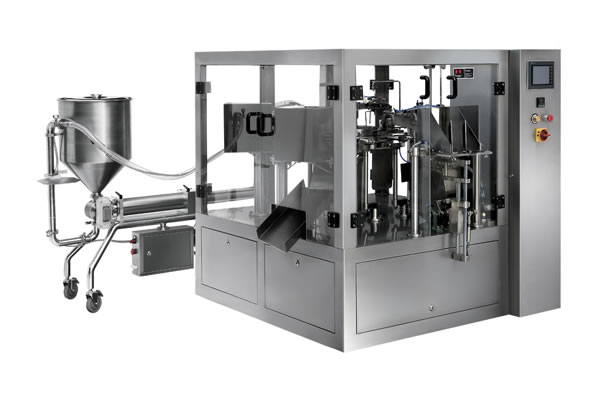

Liquid and Thick Liquid Fill Seal Production Line, Packaging machine
Applications
The fill-seal production line can be used to deal with all kinds of liquid and think-liquid (sauce), fruit juice, seasoning sauce, tomato sauce, peanut butter, jam, chili sauce, hand sanitizer, liquid detergent, and more.
Main Specifications
| Production Line |
Liquid and Thick Liquid Fill-Seal Production Line |
| Bag types |
Standup bag, portable bag, zipper bag, 4-side sealing bag, 3-side sealing bag, paper bag, etc., and all kinds of compound bags |
| Bag sizes |
W: 80-320mm; L:100-430mm |
| Filling range |
5-1500g |
| Packing speed |
25-45bags/min (depending on the product and filling weight) |
| Auxiliary equipment |
Liquid filling machine |
| Package accuracy |
Error ≥±1% |
| Total power |
2.3kw |
| Compressed air |
≥0.4 m3/min |
Main Features
- A wide range of pouches: all kinds of pre-made pouches such as flat and stand-up pouches (with/ without zip).
- Wash-down: RezPack liquid and thick liquid fill seal production line provides direct water-washing of its machine surface, so as to timely clean up the corrosive materials. This helps enhance the hygiene level, safety, and prolong the service life.
- Easy to operate: PLC controller and color touch-screen, fault indication on the touch screen.
- Easy to adjust: only about 10 minutes to change different pouches.
- Frequency control: speed of the liquid and thick liquid fill seal production line can be adjusted by frequency conversion within the range.
- High automation: The liquid and thick liquid fill seal production line is unmanned in weighing and packing process, machine alarm automatically when failure.
- Waterproof design: As the machine surface can be washed down, the bag packing machinery provides easy cleaning and long service life.
