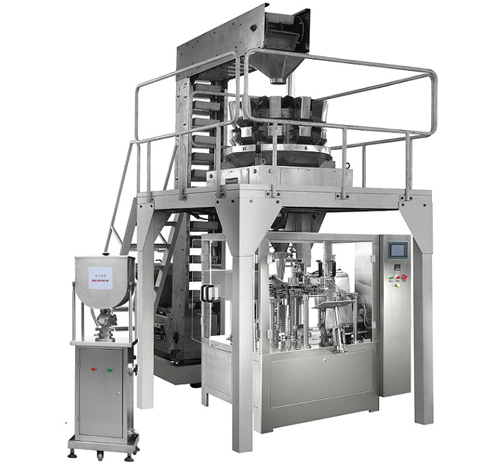

Double Filling Production Line, Bagging machine

Applications

RezPack double filling production line is suitable for packing more than two kinds of materials, including liquid, sauce, with rice, grains, etc.

Main Specifications

Production Line	Double Filling Production Line
Bag types	Standup bag, portable bag, zipper bag, 4-side sealing bag, 3-side sealing bag, paper bag, etc., and all kinds of compound bags
Bag sizes	W: 80-320mm; L:100-430mm
Filling range	5-1500g
Packing speed	25-45bags/min (depending on the product and filling weight)
Auxiliary equipment	Multi-head Weigher, Bucket Conveyor, Working Platform; liquid filling machine
Package accuracy	Error ≥±1%
Total power	4.5kw
Compressed air	≥0.4 m³/min

Main Features

A wide range of pouches: all kinds of pre-made pouches such as flat and stand-up pouches (with/ without zip).
Easy to operate: PLC controller, HMI system, fault indication on the touch screen.
Easy to adjust: only about 10 minutes to change different pouches.
Wide application: two kinds of materials filling, or large capacity filling.
Frequency control: speed can be adjusted by frequency conversion within the range.
High automation: The double filling production line is unmanned in weighing and packing process, providing auto alarm in case of failure.

Safety and Hygiene

RezPack double filling production line provides no fill, no seal as well as auto alarm when there is no pouch/ incorrect pouch opening.
The production line will automatically alarm and stop in case of inadequate air pressure.
The bag packing machinery, installed with safety guards with safety-switches, provides auto alarm and stop when the safety guards are opened.
The filling equipment has hygienic structure, and the parts that touch products are made of sus304 stainless steel.
Designed with imported engineering plastic bearings, the double filling production line requires no oiling and generates no contamination.
The filling machinery comes with oil-free vacuum pump to avoid pollution to the production environment.
