Small Type Packaging Machine (Automatic), Bagging Machine

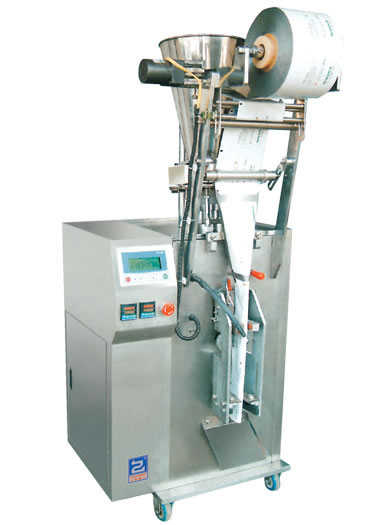

Small Type Packaging Machine (Automatic)

Application

The automatic small type packaging machine is suitable for packing loose, non sticky granular materials such as pellets, sugar, soup, oatmeal, seeds, coffee, instant drinks, pills, and more. The automatic packaging machine is most commonly used in pharmacy, food, dairy, and agriculture industries.

Main Features

PLC control, together with English-Chinese display, makes RezPack small type packaging machine fully automatic and easy to operate, adjust, and maintain.
The automatic packaging machine is designed with photoelectric tracking system and two-way compensation mechanism, for correct and accurate double-face printing and counting.
The casing of the vertical packaging machine is made of stainless steel, which is corrosion-proof and easy to clean.
The small type packaging machine uses measuring cup for dosing.
Options of cutting way: saw-tooth cutting, dashed line cutting.
Option: ribbon coding machine.

Main Specifications of High Speed Vertical FFS Machine

Item	Specifications	Remark
Pouch length	50-120mm	Adjustable (within the length range)
Pouch width	40-80mm	Should change bag former
Filling capacity	1-20ml, 20-50ml	Based on dosing system
Packing speed	30-60bags/min	Based on material and bag size
Feeding device	Measuring cup
Standard cutting device	Saw-tooth cutting, smooth cutting, with tear notch, dashed line cutting	A choice between three
Sealing type	3-side sealing
Driver system	Mechanical driver
Applicable film	PET/AL/PE, PET/PE, NY/PE, NY/AL/PE, etc.
Film width	160mm
Film roller specification	Film outer diameter<300mm, film inner diameter 70-76mm
Voltage	380V 3 phase, 50Hz	Made in accordance with customer request
Total power	0.9Kw
G.W	280Kg
Package dimension	1100 × 820 × 1800mm ( L × W × H)
Optional device	Ribbon printer, embossing type dating unit

RezPack, ISO9001 approved, is a leading Chinese small type packaging machine manufacturer. In addition to the vertical packaging machine, there are also pre-made pouch packing machinery, pillow type packaging machine, measuring equipment, conveyor equipment, and more, available at RezPack. Due to high efficiency, reliable performance and affordable prices, CE certified RezPack products are being increasingly used in food, beverage, medicine, and electronics industries, for packing granule, powder, liquid and thick liquid. Customers can also enjoy attentive service at RezPack. Hence, you can feel secure in purchasing RezPack granule packing machine, powder packing machine, liquid and thick liquid packing machine, and any other equipment.
