High Speed Vertical FFS Machine, Automatic Fill and Seal Machine

High Speed Vertical FFS Machine

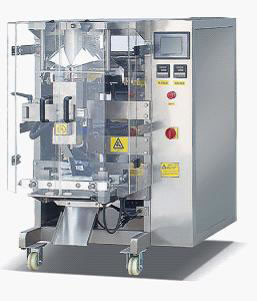

High Speed Vertical FFS Machine, RZ-S500

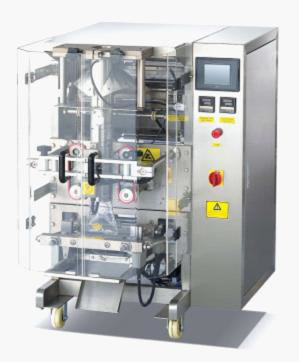

Large Type VFFS Machine (Automatic), RZ-500

RezPack is an ISO9001 certified Chinese manufacturer of high speed vertical FFS machine and large type VFFS machine. The two vertical packaging machines have the same application and features, which are shown as below.

Application

The high speed vertical FFS machine and automatic large type VFFS machine are suitable for packing granule, power, solid state materials, such as coffee, potato chips, puffed food, shrimp crackers, peanuts, nuts, popcorns, salt, sugar, tea, seeds, etc.

Main Specifications of High Speed Vertical FFS Machine

Machine name	High Speed Vertical FFS Machine
Model	RZ-S500
Capacity	Max. 99bags/min
Bags size	Length: 60---300mm
Bags size	Width: 90---200mm
Max. film width	Max. 420mm
Film thickness	0.04-0.09mm
Pulling bet type	Double belts
Air consumption	0.8Mpa 0.5m³/min
Power source	2.2KW 220V 50HZ
Dimension	L1458×W920×H1392mm
Weight	500kg

Main Specification of Automatic Large Type VFFS Machine

Machine name	Automatic VFFS Machine
Model	RZ-500
Capacity	Max. 70bags/min
Bags size	Length: 60---300mm
Bags size	Width: 60---200mm
Max. film width	Max. 420mm
Film thickness	0.04-0.09mm
Pulling bet type	One belt
Air consumption	0.8Mpa 0.5m³/min
Power source	2.2KW 220V 50HZ
Dimension	L1320×W920×H1392mm
Weight	450kg

Main Features

The high speed vertical FFS machine and automatic large type VFFS machine offers low cost high gain, high speed and efficiency.
The vertical packaging machine is designed with famous brand PLC control system and large touch screen, for easy operation.
The vertical form fill seal machine provides film drawing down system and horizontal sealing controlled by servo motor.
The packaging machinery minimizes the loss, with the use of complete automatic alarm protection.
The high speed vertical FFS machine and automatic large type VFFS machine can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.

RezPack is involved in the production and sale of a complete line of bag packaging machinery, vertical packaging machine, candy packing machine, rice weigh fill seal production line, and related products. With rich production experience, RezPack is happy to be able to provide top quality products for customers all over the globe. RezPack products are CE certified and popular with many customers in the international market. Geographic location affords RezPack easy access to many forms of transportation, which translates into reduced shipping charges for the clients. The staff at RezPack warmly welcomes you to try its products, and is looking forward to hearing from you.
