High Speed Vertical Form Fill Seal Machine, Bagging Machine

High Speed Vertical Form Fill Seal Machine

High Speed Vertical FFS Machine, RZ-G42120
High Speed VFFS Machine, RZ-K5285
Large Type Vertical FFS Machine (Automatic), RZS-600
Large Type Vertical Form Fill Seal Machine (Automatic), RZ800/900/1050

RezPack, a professional Chinese vertical packaging machine manufacturer, provides high speed vertical form fill seal machine, high speed VFFS machine, large type vertical FFS machine, automatic large type vertical form fill seal machine, and others.
These four vertical packaging machines are generally used for packing granule, power, solid state materials, such as coffee, potato chips, puffed food, shrimp crackers, peanuts, nuts, popcorns, salt, sugar, tea, seeds, and more.

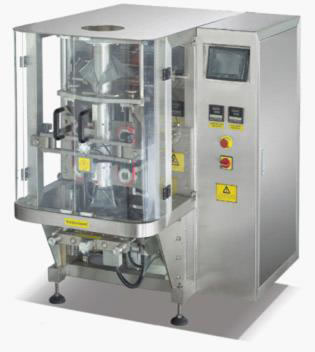

Main Specifications of High Speed Vertical FFS Machine

Machine name	High Speed Vertical FFS Machine
Model	RZ-G42120
Capacity	Max. 120 bags/min
Bag size	L: 50-300mm
Bag size	W: 90-200mm
Max. film width	Max. 420mm
Film material	BOPP/CPP, BOPP/MCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE NY/PE PET/PE
Power source	4KW 220V 50HZ
Air consumption	0.8Mpa 0.3m³/min
Machine size	L1490× W1020 × H1324mm
Machine weight	700Kg

Main Features of High Speed Vertical FFS Machine

RezPack high speed vertical form fill seal machine makes use of double servo motors for film drawing down system and provides automatic film rectifying deviation.
Horizontal sealing controlled by servo motor.
The VFFS machine completes bagging, sealing, date printing, punching, and counting automatically.
The high speed vertical form fill seal machine comes with famous brand PLC and pneumatic system for vertical seal and horizontal seal.
With low maintenance, the packing machine is easy to operate, and compatible with different internal or external measuring devices.

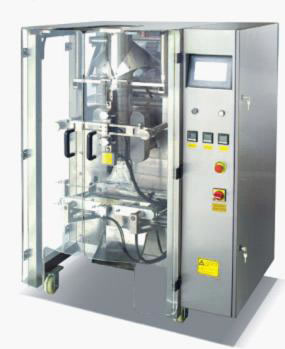

Main Specifications of High Speed VFFS Machine

Machine name	High Speed VFFS Machine
Model	RZ-K5285
Capacity	Max. 85bags/min
Bag size	Length: 80-350mm
Bag size	Width: 80-250mm
Max. film width	Max. 520mm
Film thickness	0.04-0.09mm
Filling range	150-2000ml
Power source	2.5KW 220V 50HZ
Air consumption	0.8Mps 0.4m³/min
Dimension	L1500×W1140×H1540mm
Weight	700kg

Main Features of High Speed VFFS Machine

RezPack high speed VFFS machine has its film drawing down system controlled by servo motor.
Automatic film deviation rectifying property.
The high speed VFFS machine offers complete alarm systems to reduce waste.
Equipped with feeding and measuring units, the vertical packaging machine can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, and finished product delivery, in a continuous flow.

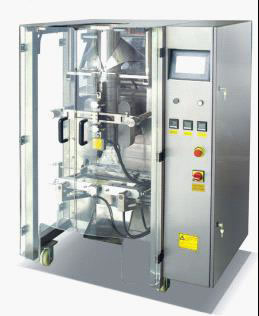

Main Specifications of Automatic Vertical FFS Machine

Machine name	Automatic Vertical FFS Machine
Model	RZ-600
Capacity	Max. 60bags/min
Bag size	Length: 80-350mm
Bag size	Width: 100-250mm
Max. film width	Max. 520mm
Film thickness	0.04-0.09mm
Filling range	150-2000ml
Power source	2.5KW 220V 50HZ
Air consumption	0.8Mps 0.4m³/min
Dimension	L1500×W1140× H1540mm
Weight	680kg

Main Features of Automatic Vertical FFS Machine

The film drawing down system of RezPack automatic vertical FFS machine is controlled by servo motor.
The large type vertical FFS machine provides automatic rectifying of film deviation.
Complete alarm system to reduce waste.
Equipped with feeding and measuring units, the vertical packaging machine can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, and finished product delivery, in a continuous flow.

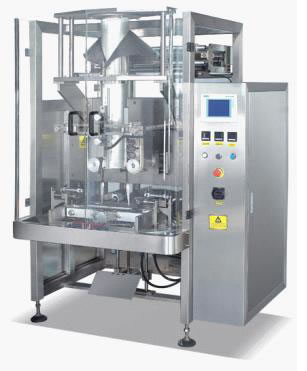

Main Specifications of Automatic Large Type Vertical Form Fill Seal Machine

Machine name	Automatic Vertical Form Fill Seal Machine
Model	RZ-800	RZ-900	RZ-1050
Capacity	Max. 50bags/min	Max. 45bags/min	Max. 30bags/min
Bag size	Width: 100-300mm	Width: 140-350mm	Width: 300-500mm
Bag size	Length: 100-390mm	Length: 100-450mm	Length: 100-800mm
Max. film width	Max. 620mm	Max. 730	Max. 1050mm
Film thickness	0.04-0.09mm	0.06-0.12mm	0.06-0.12mm
Power source	4.0KW 220V 50HZ	4.5KW 220V 50HZ	6KW 220V 50HZ
Air consumption	0.8Mpa 0.6m³/min	0.8Mpa 0.8m³/min	0.8Mpa 0.8m³/min
Dimension	L1250×W1600×H1700	L1360×W1630×H1900	L2250×W1800×H2400
Weight	800kg	900kg	1000kg

Main Features of Automatic Large Type Vertical Form Fill Seal Machine

The large type, automatic vertical form fill seal machine adopts double servo motors for film drawing down system.
Automatic film deviation rectifying function
The large type vertical form fill seal machine is designed with famous brand PLC and a pneumatic system for vertical and horizontal sealing.
The automatic VFFS machine is compatible with different internal and external measuring devices.

RezPack products include pre-made pouch packing machinery, pillow type packaging machine, conveyor equipment, measuring equipment, and others. High quality, CE certified vegetable packaging machine, milk candy, bubble gum production line, etc. coupled with excellent after-sales service, have won RezPack a number of customers from the US, Canada, New Zealand, Australia, Mexico, Europe, the Middle East, and South America, to name a few. If you are interested in RezPack packing machine, please continue to browse the webpage for more details. Thanks.
