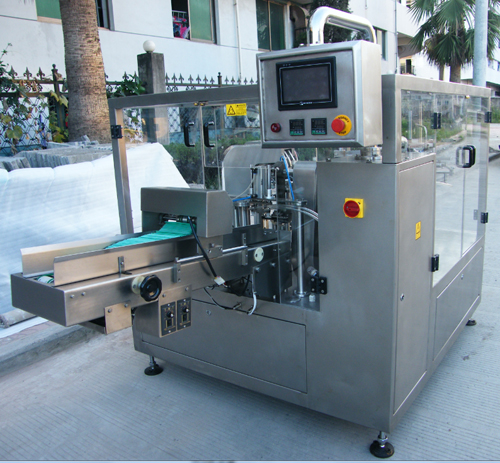

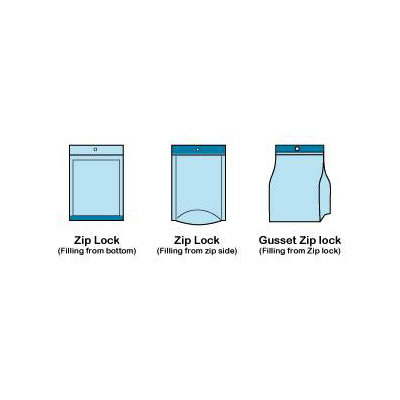

The zipper pouch filling closing sealing machine is ideal for all kinds of compound pouches with zipper, including flat zipper pouch, stand-up zipper pouch, and gusset zip lock pouch, etc.
| Bag types | Standup bag/ doy bag/ bottom gusset bag |
| Bag sizes | W:80-320mm L:100-380mm |
| Filling range | 5-1500g |
| Packing speed | 15-45 bags/min (depending on the product and filling weight) |
| Package accuracy | Error ≤±1% |
| Compressed air | ≥0.4 m3/min |
Horizontal bag-feeding device: The unit makes the zipper pouch filling closing sealing machine store more bags, feeding each bag automatically.
Zipper-bag opening device: The opening device is special for zipper bags, protecting the bag mouth from being deformed or damaged.

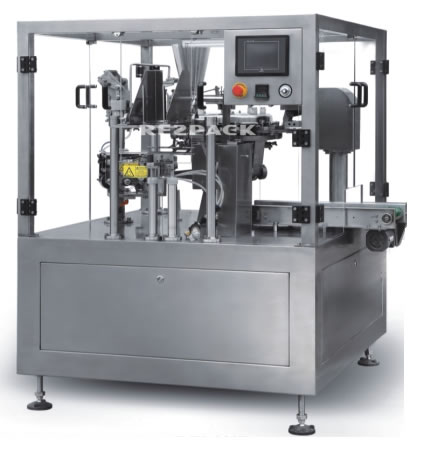

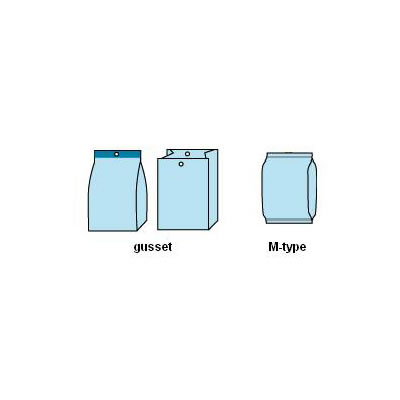

The gusset bag fill seal machine is designed for all kinds of gusset pouches (M-type pouch), including stand-up gusset pouch, compound paper pouch, etc.
| Bag types | All kinds of compound gusset bags |
| Bag sizes | W:80-320mm L:100-380mm |
| Filling range | 5-1500g |
| Packing speed | 15-45 bags/min (depending on the product and filling weight onto the bag packing machinery) |
| Package accuracy | Error ≤±1% |
| Compressed air | ≥0.4 m3/min |
Gusset bag opening device: The gusset bag fill seal machine comes with an opening device, which is special for gusset bags and serves to make sure the bag is opened enough.

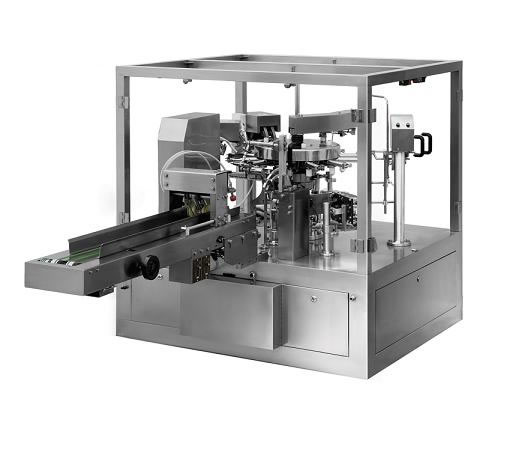

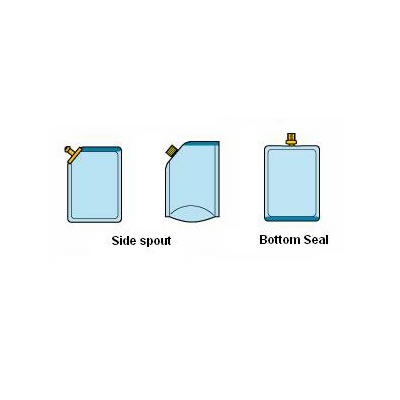

The spout bag filling seal machine suits all kinds
of preformed side spout pouches and bottom seal
spout pouches.
Liquid: The spout bag filling seal machine is ideal for liquids like rice wine, soy sauce, rice vinegar, fruit juice, beverage, detergent, etc.
Thick liquid: tomato sauce, peanut butter, jam, chili sauce, bean paste, etc.
| Bag types | All kinds of preformed corner spout bags and bottom seal spout bags |
| Bag sizes | W:80-320mm L:100-380mm |
| Filling range | 5-1500g |
| Packing speed | 15-45bags/min (depending on the product and filling weight) |
| Package accuracy | Error≤±1% |
| Total power | 3.5 kw |
| Compressed air | ≥0.4 m3/min |
Wash-down: With direct water-washing of the machine surface, it is easy to timely clean up the corrosive material so as to enhance the hygienic level and safety and prolong the service life.
Waterproof design: The machine surface can be washed down, which ensures easy cleaning, and long service life of the spout bag filling seal machine.
