Powder VFFS Machine

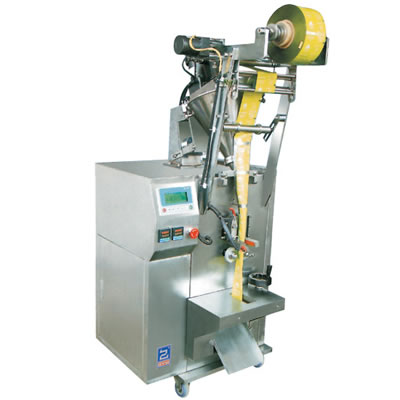

Powder VFFS Machine, RZ-F80C

Main Specifications

Item	Specifications	Remark
Pouch length	50-120mm	Adjustable (coming within the length)
Pouch width	40-80mm	Should change bag former
Filling capacity	1-20ml, 20-50ml	Based on dosing system
Packing speed	30-60bags/min	Based on material and bag size
Feeding device	Auger screw
Standard cutting device	Saw-tooth cutting, smooth cutting, with tear notch, dashed line cutting	A choice between three
Sealing type	back side sealing	Pillow type
Driver system	Mechanical driver
Applicable film	PET/AL/PE, PET/PE, NY/PE, NY/AL/PE etc.
Film width	160mm
Film roller specification	Film outer diameter<300mm, Film inner diameter 70-76mm
Voltage	380V 3 phase, 50Hz	Made in accordance with customer request
Total power	0.9Kw
G.W	280Kg
Package dimension	1100×820×1800mm ( L× W×H)
Optional device	Ribbon printer, embossing type dating unit

Main Features

PLC control, together with English-Chinese display, makes RezPack powder VFFS machine fully automatic and easy to operate, adjust, and maintain.
The powder vertical form fill seal machine is designed with photoelectric tracking system and two-way compensation mechanism, for correct and accurate double-face printing and counting.
The casing of the powder VFFS machine is made of stainless steel, which is corrosion-proof and easy to clean.
Auger screw is used for dosing.
Options of cutting way: saw-tooth cutting, dashed line cutting
Option: ribbon coding machine

RezPack is an ISO9001 certified Chinese powder VFFS machine manufacturer, providing CE certified vertical packaging machine, pillow type packaging machine, pre-made pouch packing machinery, and more. Easy access to complete infrastructure and convenient air, seal and land transportation allows RezPack to make deliveries at low shipping charges for customers. If you are interested in RezPack products, please see the webpage to find the right equipment for your business. The staff is happy to assist you with your packaging machinery need.
