Granule Packing Machine, Vertical Form Fill Seal Machine

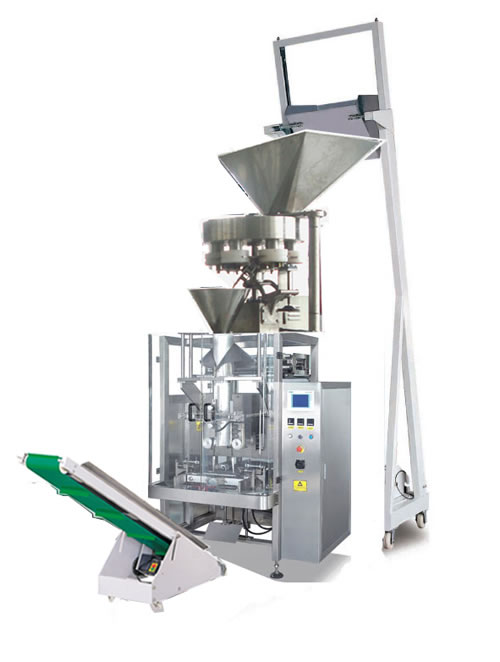

Granule Packing Machine, Vertical Form Fill Seal Machine, RZ-400/600/800/1050

Application

The granule packing machine is ideal for all kinds of granules, like washing powder, rice, seeds, sugar, fodder, sesame seeds, etc.

Main Specifications

Model	RZ-400	RZ-600	RZ-800	RZ-1050
Capacity	Max. 40bags/min	Max. 60bags/min	Max. 50bags/min	Max. 30bags/min
Bag size	Width: 50-150mm	Width: 100-250mm	Width:100-300mm	Width: 300-500mm
Bag size	Length: 80-200mm	Length: 80-350mm	Length:100-390mm	Length: 100-800mm
Max. film width	Max. 320mm	Max. 520mm	Max. 620mm	Max. 1050mm
Film thickness	0.04-0.09mm	0.04-0.09mm	0.04-0.09mm	0.06-0.12mm
Power source	2KW 220V 50HZ	2.5KW 220V 50HZ	4.0KW 220V 50HZ	6KW 220V 50HZ
Air consumption	0.8Mpa 0.25m³/min	0.8Mpa 0.4m³/min	0.8Mpa 0.6m³/min	0.8Mpa 0.8m³/min
Dimension	L1110×W800×H1130	L1500×W1140×H1540	L1250×W1600×H1700	L2250×W1800×H2400
Weight	300kg	680kg	800kg	1000kg

Main Features

RezPack granule packing machine provides low cost high gain, high speed and efficiency.
The vertical form fill seal (VFFS) machine comes with famous brand PLC control system and large touch screen, and thus is easy to operate.
The vertical packaging machine makes use of film drawing down system and horizontal sealing controlled by servo motor.
The granule packing machine minimizes the loss, by use of auto alarm design.
Equipped with feeding and measuring devices, the vertical form fill seal machine accomplishes feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, and finished product delivery, in a continuous flow.
As to the way of bag making, the VFFS machine can make pillow type bags and standup bags as per customer needs.

As an experienced Chinese granule packing machine manufacturer, RezPack is ISO9001 approved due to its management in line with international standards. In addition to the vertical form fill seal (VFFS) machine, or vertical packaging machine, there are also pre-made pouch packing machinery, pillow type packaging machine, tablet packing machine, candy packing machine, pickle packing production line, and more, available at RezPack. RezPack CE certified granule weighing filling production line, liquid and thick liquid fill seal production line, and powder filling sealing production line, etc. are increasingly used by customers from food, beverage, medicine, electronics industries, among others, because of their reliable performance, high efficiency and affordable prices. The staff also offers complete service, so customers can feel secure in purchasing RezPack packaging equipment.
